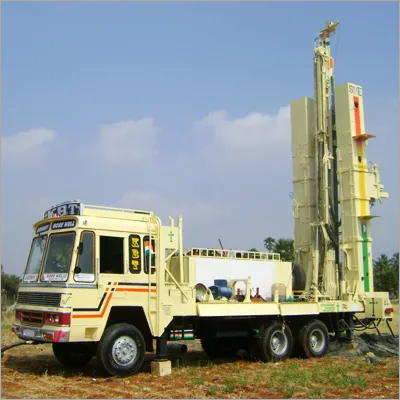

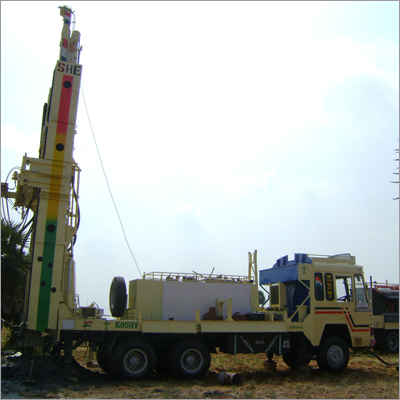

Drilling Water Well Drilling Rigs

Drilling Water Well Drilling Rigs
Drilling Water Well Drilling Rigs
Product Code : SHE-13
Brand Name : SENDHUR HYDRAULICS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

We follow all the relevant industrial norms and guidelines, while manufacturing and supplying an extensive range of Drilling Water Well Drilling Rigs. These rigs are highly useful in areas of poor infrastructure and difficult terrain, where inferior rigs would simply not cope. We manufacture these rigs under the strict guidance of the expert supervisors using quality approved materials. To offer a defect free range, we check the Drilling Water Well Drilling Rigs on functioning and durability parameters.

Features:

  • Consumes less power

  • High operational fluency

  • Long service life





     SHE-BXL SEMI AUTOMATIC DRILL ROD                                            CHANGER

    DEPTH



    300 Mtrs

    DIAMETER

    6 1/2" Drill to 8 1/2"

    PRIME MOVER

    On suitable truck mounted rig with power from truck engine through transmission gear box

    MAST


    TYPE

     Structural type

    CAPACITY

    18 ton to 25 tons

    HEIGHT

    8.6 mtrs

    ROD HANDLING CAPACITY

    6.1 mtr (20 feet)

    JACKS

    Box type hydraulic jacks 4 Nos



    FEED CYLINDER & WIRE ROPE

    1:3 Ratio

    DRILL ROTARY HEAD

    3:1 Gear box



    MOTOR

    OMV 315/400



    Rotary spindle

    0 to 160 rpm



    DRILL ROD CHANGING

    Electrical Push Button Operating System

    Rod changing operation done by remote control



    FEED CYLINDER CAPACITY

    125*2350



    PUMP

    38+45 GPM



    MAX.LOAD LIFTING

    7250 KG



    COMPRESSOR

    CFM/PSI

    1100/300

    MAX.PULL UP SPEED



    MAX.PULL IN SPEED

    20 ft/8 sec



    20 ft/5 sec

    MAX.TORQUE

    24450 lb-in

    WATER PUMP P-56 *

    TYPE

    WORKING PRESSURE

    FLOW RATE





    Triplex reciprocating pump

    110 Bar

    106 Lpm



    WATER PUMP P-76 *

    TYPE

    WORKING PRESSURE

    FLOW RATE





    Triplex reciprocating pump

    180 Bar

    150 Lpm

    WELDING MACHINE *

    220 Amps,250 Amps, 300 Amps



    HAMMER DISMANTLER *

    Hydraulic type



    '' * '' Mentioned for optional items or comfort with the customer choice..
